RACV

RACV

DOSING PUMP

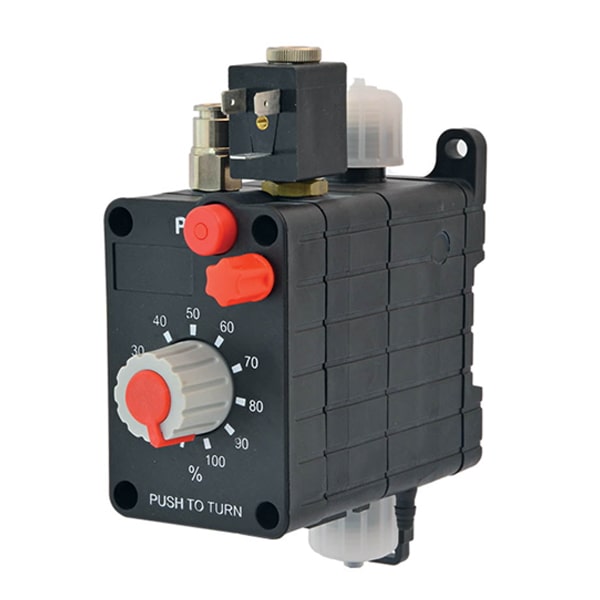

Compressed-air metering pump RACV is the perfect solution for specific dosage need like that of car wash sector.
It only works with compressed air without lubricant and condensed water. Air supply pressure must be between 6 and 8 bar.

RACV, with constant dosing system, has pneumatic stroke frequency adjustment, ceramic or SS balls, PP liquid ends, PTFE membrane and electrovalve.
Installation mode: horizontal (with bracket) or wall (DIN rail).

FEATURES

• Foot mounted
• Compressed air driven metering pump
• Pneumatic stroke frequency adjustment
• Air supply pressure range: 6÷10 bar
• Max injections: 120 inj/min
• Working temperature: 0÷50 C°
• PP liquid ends
• PTFE membrane
• Rail wall mounting
• Ceramic or SS balls

FUNCTIONS

• Electrovalve

EQUIPMENT

Dosage Costant

FLOW

Manual venting

bar	l/h	cc/S
6	1	0.12
6	3	0.42
6	6	0.83
6	12	1.66

ACCESSORIES

• PVDF foot/filter valve
• 2 m flexible PVC suction hose

CERTIFICATE
