LOTUS MINI

LOTUS MINI

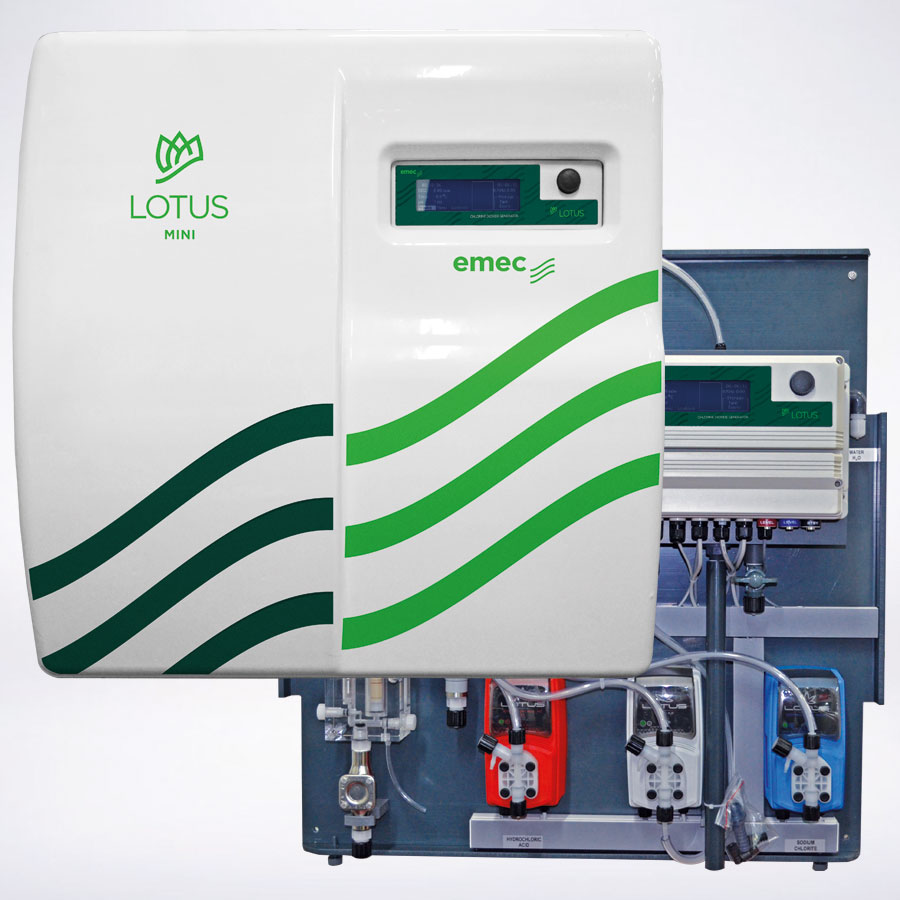

LOTUS MINI is a versatile and complete solution for all your water disinfection needs. Its elegant cover preserves the cleanliness of the inner components and their integrity. Chlorine dioxide produced by LOTUS MINI can be proportional to the circulating water flow or based on a measured setpoint.

There is no storage of chlorine dioxide therefore there is no chlorine dioxide gas or concentrated solutions outside of the process application. LOTUS MINI can be equipped with a gas detection sensor.

• RANGE : 8-20 g/h
• MAX CAPACITY : 480 g/day

TUTORIAL

TutorialParameter

CHLORINE DIOXIDE GENERATOR

LOTUS MINI is all-round solution for all your need of water disinfection. LOTUS MINI with probe measure system produces, doses and controls chlorine dioxide for water disinfection. It is equipped with a ClO₂ probe (SCL2 or SCL17) or an mV probe (ERH), a probe holder and a filter.
Chlorine dioxide is produced from diluted base chemicals: acid-chlorite process by hydrochloric acid (HCl 9%) and sodium chlorite (NaClO₂ 7,5%).
Chlorine dioxide produced by LOTUS MINI is set to be proportional to the circulating water flow or based on a set-point – it is then dosed into the water flow. There is no storage of chlorine dioxide hence no chlorine dioxide gas or concentrated solutions exist outside of the process application.

LOTUS MINI with probe measure is designed to produce chlorine dioxide in a reaction chamber. Multifunction valves on the injection points ensure the security of the reaction chamber.
The base chemicals are stored in tanks and fed into the reaction chamber through suction lances. Integrated level switches automatically stop the pumps when the tanks are empty.

GAS SENSOR OPTION
This model of LOTUS MINI is equipped with gas sensor detection.

FEATURES

• PERMANENT DATA STORAGE (WITHOUT BATTERY) with system log on display
• Stand-by input
• 3 flow sensors (mod. SEFL) input
• Real time production data
• Multifunction valve (MFKT/V)
• IP65 protection (NEMA4x) of LOTUS control instrument
• Working temperature: 0-45°C (32-110°F)
• PVC reaction chamber
• Instantaneous ClO2 production
• ClO2 dosing in PROPORTIONAL mode
• Pumps and SEFL flow sensors monitoring
• Service due data
• Water meter input
• Flow control input (flow alarm)
• Tank level controls (level alarms)
• LOTUS control instrument
• Pump for diluition water (grey)
• mA output
• ClO2 probe reading (LOTUS MINI SCL2 – LOTUS MINI SCL17)
• Temperature probe reading (probe and accessories not included)
• mV probe reading (LOTUS MINI ERH)
• ASA (Acrylonitrile Styrene Acrylate) enclosure

MODELS

LOTUS MINI 8 WITH PROBE MEASURE

HOUR CAPACITY : 8 g/h

PRESSURE : 8 bar

CHEMICAL CONSUMPTION :

• HCl 0.2 l/h
• NaClO2 0.2 l/h

CONCENTRATION : 2 g/l

LOTUS MINI 20 WITH PROBE MEASURE

HOUR CAPACITY : 20 g/h

PRESSURE : 8 bar

CHEMICAL CONSUMPTION :

• HCl 0.5 l/h
• NaClO2 0.5 l/h

CONCENTRATION : 2 g/l

COMMUNICATION

• ERMES
• MODBUS
