LOTUS AIR

ATMOSPHERIC PRESSURE CHLORINE DIOXIDE GENERATOR

Categories: ,

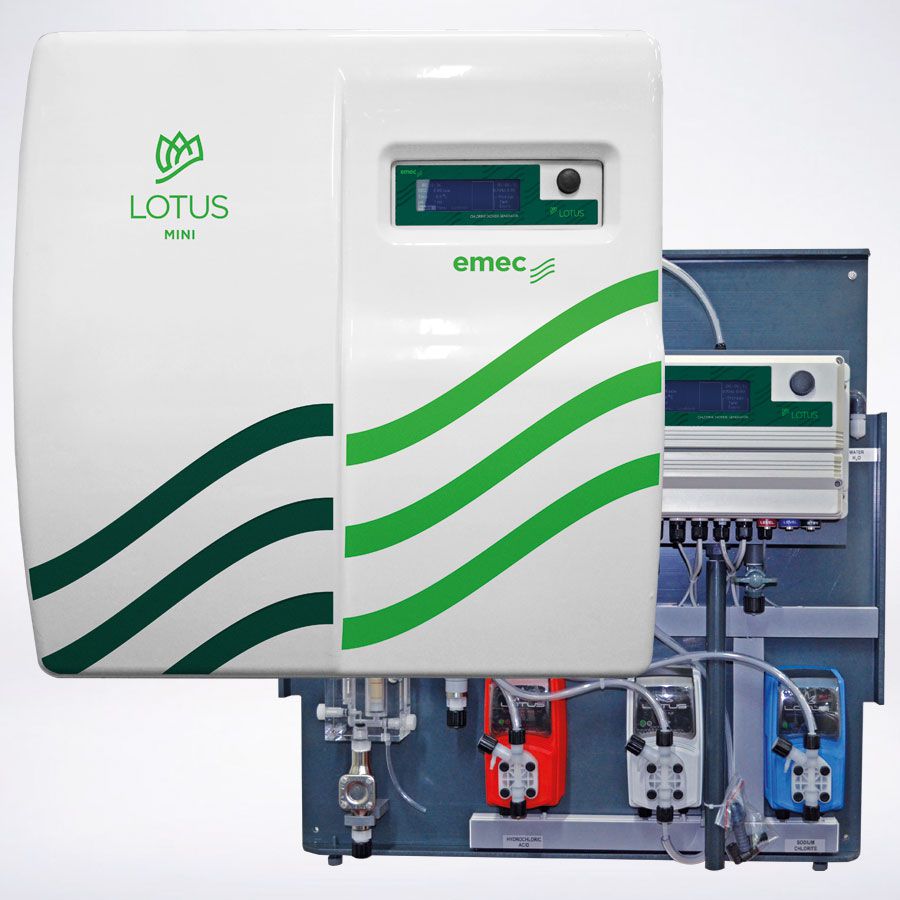

LOTUS MINI

CHLORINE DIOXIDE GENERATOR

LOTUS MINI is all-round solution for all your need of water disinfection. LOTUS MINI with probe measure system produces, doses and controls chlorine dioxide for water disinfection. It is equipped with a ClO2 probe (SCL2 or SCL17) or an mV probe (ERH), a probe holder and a filter.
Chlorine dioxide is produced from diluted base chemicals: acid-chlorite process by hydrochloric acid (HCl 9%) and sodium chlorite (NaClO2 7,5%).
Chlorine dioxide produced by LOTUS MINI is set to be proportional to the circulating water flow or based on a set-point – it is then dosed into the water flow. There is no storage of chlorine dioxide hence no chlorine dioxide gas or concentrated solutions exist outside of the process application.

LOTUS MINI with probe measure is designed to produce chlorine dioxide in a reaction chamber. Multifunction valves on the injection points ensure the security of the reaction chamber.
The base chemicals are stored in tanks and fed into the reaction chamber through suction lances. Integrated level switches automatically stop the pumps when the tanks are empty.

GAS SENSOR OPTION
This model of LOTUS MINI is equipped with gas sensor detection.

FEATURES

  • Stand-by input
  • Multi-point proportional dosing
  • Alarms: products – water – emptying
  • Water meter input
  • Real time production data
  • Temperature probe reading (probe and accessories not included)
  • Pumps and SEFL flow sensors monitoring
  • Service due data
  • LOTUS AIR control instrument
  • ERMES communication
  • ClO2 concentration measure
  • PVDF ball valve for reaction chamber empty
  • ClO2 concentration: 2 gr/l
  • 3 metering pumps: red HCl pump – blue NaCLO2 pump – grey ClO2 pump
  • Multifunction valve (MFKT/V)
  • Double chamber: reaction and storage
  • ASA (Acrylonitrile Styrene Acrylate) or fiberglass (Lotus Air 30/60 models) enclosure
  • IP65 protection (NEMA4x) of LOTUS control instrument
  • ENCODER wheel control
  • Working temperature: 0-45°C (32-110°F)

MODELS

LOTUS AIR 10

HOUR CAPACITY : 10 g/h

PRESSURE : bar

CHEMICAL CONSUMPTION

  • HCl 0.25 l/h
  • NaClO2 0.25 l/h

CONCENTRATION : 2 g/l

LOTUS AIR 30

HOUR CAPACITY : 30 g/h

PRESSURE : bar

CHEMICAL CONSUMPTION

  • HCl 0.75 l/h
  • NaClO2 0.75 l/h

CONCENTRATION : 2 g/l

LOTUS AIR 60

HOUR CAPACITY : 60 g/h

PRESSURE : bar

CHEMICAL CONSUMPTION :

  • HCl 1.5 l/h
  • NaClO2 1.5 l/h

CONCENTRATION : 2 g/l

COMMUNICATION

  • ERMES
  • MODBUS

CONFIGURATION

BASIC

  • RS485 output to link other EMEC instruments

WIFI

  • RS485 output to link other EMEC instruments
  • Web ERMES remote control (PC, smartphone or tablet)
  • Alarm messages via email

ADVANCED USB

  • RS485 output to link other EMEC instruments
  • Data Log on USB device

ETHERNET

  • RS485 output to link other EMEC instruments
  • Web ERMES remote control (PC, smartphone or tablet)
  • Alarm messages via email

2G – 3G

  • RS485 output to link other EMEC instruments
  • Web ERMES remote control (PC, smartphone or tablet)
  • Alarm messages via email
  • Alarm messages via SMS

MODBUS

  • Connection to other PLC instruments via RS485 or TCP/IP for reading and modifying parameters

LOTUS MINI

CERTIFICATE

Quality Austria
Quality Austria
Quality Austria | www.qualityaustria.com
IQNet Association
IQNet Association
IQNet Association | www.imq.it
